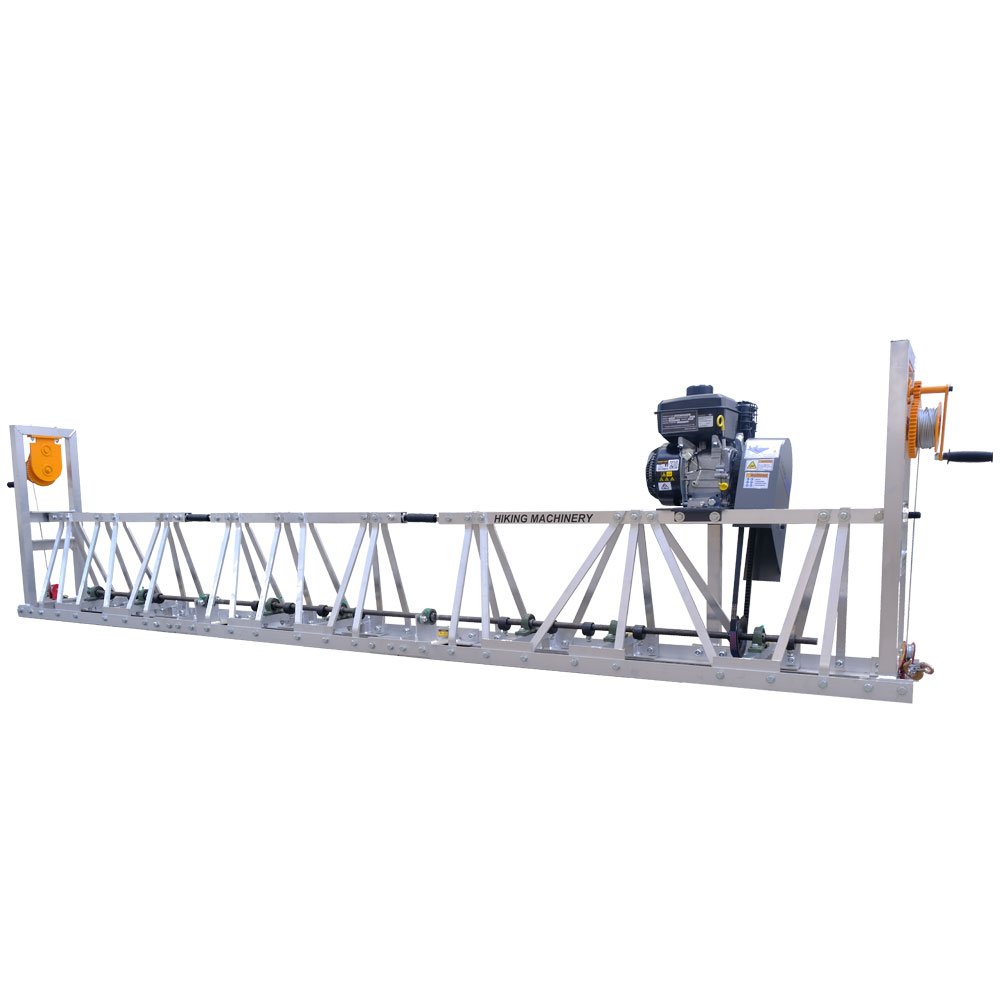

ZPL300L Vibratory Truss Screed
€5,200.00
Hiking ZPL300L Vibratory Truss Screed Machine is a high-performance piece of equipment specially designed by Hiking Machinery for construction companies and concrete contractors. Its primary goal is to enhance both the efficiency and quality of concrete construction. This machine is manufactured from premium aluminum alloy and features a manual winch, making it ideal for the paving and vibration of large concrete surfaces, such as bridges, roads, and floors.
The modular design includes leveling sections of various lengths (0.5 meters, 1 meter, and 2 meters), allowing for flexible assembly based on project requirements, with a maximum working width of up to 15 meters. The ZPL300L is powered by Honda and B&S engines, reaching speeds of up to 8,000 RPM and delivering strong and uniform vibratory forces through axial vibration, ensuring a smooth and even concrete surface. Additionally, this equipment is easy to operate, significantly saving time and labor, making it an ideal choice for improving construction efficiency.
Hiking Machinery is committed to providing high-cost-performance concrete leveling solutions through innovative technology and top-quality products. The ZPL300L addresses the issues of traditional leveling equipment, such as low efficiency and complicated operation, with its modular design and efficient vibration system, guaranteeing a uniformly leveled concrete surface and reducing rework rates. Compared to similar products on the market, the ZPL300L offers a longer lifespan and higher cost performance at the same price point, making it a smart choice for construction companies and concrete contractors.
If you are interested in our products and want to know the specific parameters and prices, please click the button below and leave your contact information.
DESCRIPTION
With exceptional technical support and customer service, Hiking Machinery has become a reliable partner in the European construction industry. The ZPL300L is not just a piece of equipment; it is your powerful assistant in enhancing construction efficiency and project quality.
MODULE COMPONENTS
ZPL300L Power Unit
| Model | Engine Model | Size | Weigh |
|---|---|---|---|
|
Power Unit (ZPL-P30L) |
Working Width Within 6 Meters: Honda Gx160 / Briggs & Stratton Xr5.0 / Vanguard 5.0 / Loncin 168F Working Width More Than 6 Meters: Honda Gx390 / Loncin 190F |
Length: 3.1m
Frame Width: 355mm
Height: 475mm |
92KG |
|
Power Unit (ZPL-P25L) |
Working Width Within 6 Meters: Honda Gx160 / Briggs & Stratton Xr5.0 / Vanguard 5.0 / Loncin 168F Working Width More Than 6 Meters: Honda Gx390 / Loncin 190F |
Length: 2.5m
Frame Width: 355mm
Height: 475mm |
82KG |
|
Power Unit (ZPL-P15L) |
Working Width Within 6 Meters: Honda Gx160 / Briggs & Stratton Xr5.0 / Vanguard 5.0 / Loncin 168F Working Width More Than 6 Meters: Honda Gx390 / Loncin 190F |
Length: 1.55m
Frame Width: 355mm
Height: 475mm |
66KG |
ZPL300L Center Section
| Model | Size | Weight |
|---|---|---|
|
Center Section (ZPL-C10L) |
Length: 1.1m
Frame Width: 355mm
Height: 475mm |
22kg |
|
Center Section (ZPL-C15L) |
Length: 1.55m
Frame Width: 355mm
Height: 475mm |
30kg |
|
Center Section (ZPL-C25L) |
Length: 2.5m
Frame Width: 355mm
Height: 475mm |
46kg |
ZPL300L End Section
| Model | Size | Weight |
|---|---|---|
|
End Section (ZPL-E10L) |
Length: 1.1m
Frame Width: 355mm
Height: 475mm |
26kg |
|
End Section (ZPL-E15L) |
Length: 1.55m
Frame Width: 355mm
Height: 475mm |
34kg |
Modular Design: The leveling section lengths are selectable (0.5 meters, 1 meter, 2 meters) for flexible assembly, accommodating different construction needs, with a maximum working width of up to 15 meters.
Efficient Vibration System: Equipped with Honda and B&S engines that reach speeds of 8,000 RPM, it delivers strong and consistent vibratory forces to ensure a flat and even concrete surface.
High-Quality Materials: Made from high-strength aluminum alloy, the machine is lightweight yet durable, perfect for extended periods of high-intensity work.

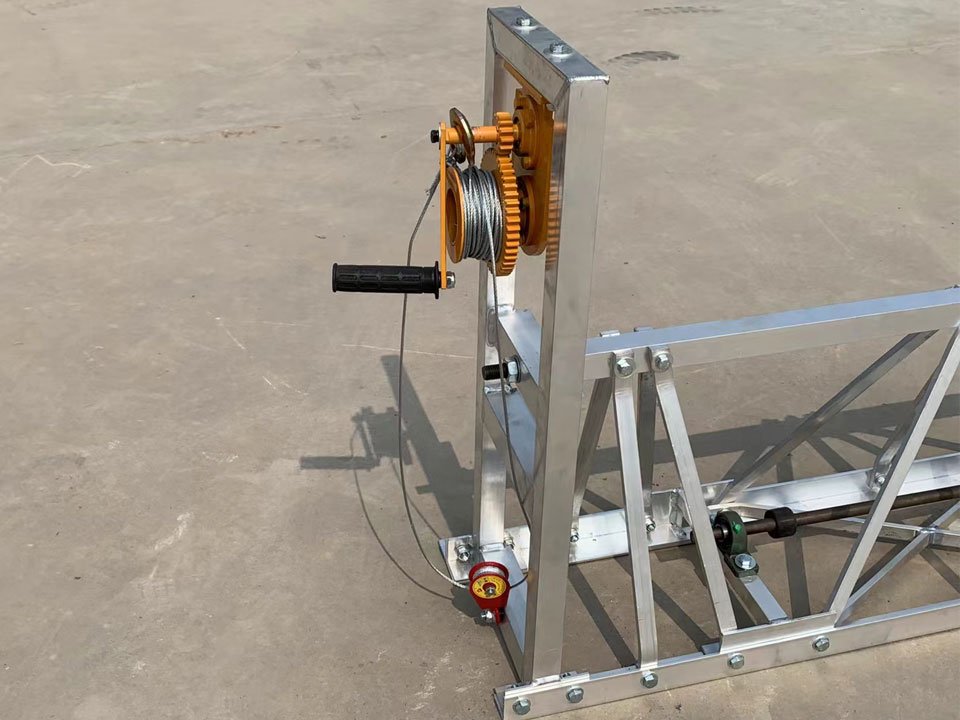

User-Friendly Operation: Featuring a manual winch, the ZPL300L is easy to operate, reducing labor demand, and boosting construction efficiency.
Time-Saving Solutions: The efficient vibration and modular design substantially shorten construction time, helping projects finish on schedule.
Cost Reduction: By minimizing labor needs and rework rates, the ZPL300L lowers overall construction costs and enhances project profit margins.
Wide Applicability: Suitable for various concrete surfaces, such as bridges, roads, and floors, it meets diverse construction scenario requirements.
By incorporating the Hiking ZPL300L Vibratory Truss Screed Machine into your operations, you will experience a substantial increase in construction efficiency, achieve smoother concrete surfaces, and significantly reduce rework rates. Whether tackling large bridge projects or small floor jobs, you can seamlessly manage your projects while saving time and costs and enhancing quality. Choose Hiking Machinery for a more efficient, economical, and reliable construction experience.
