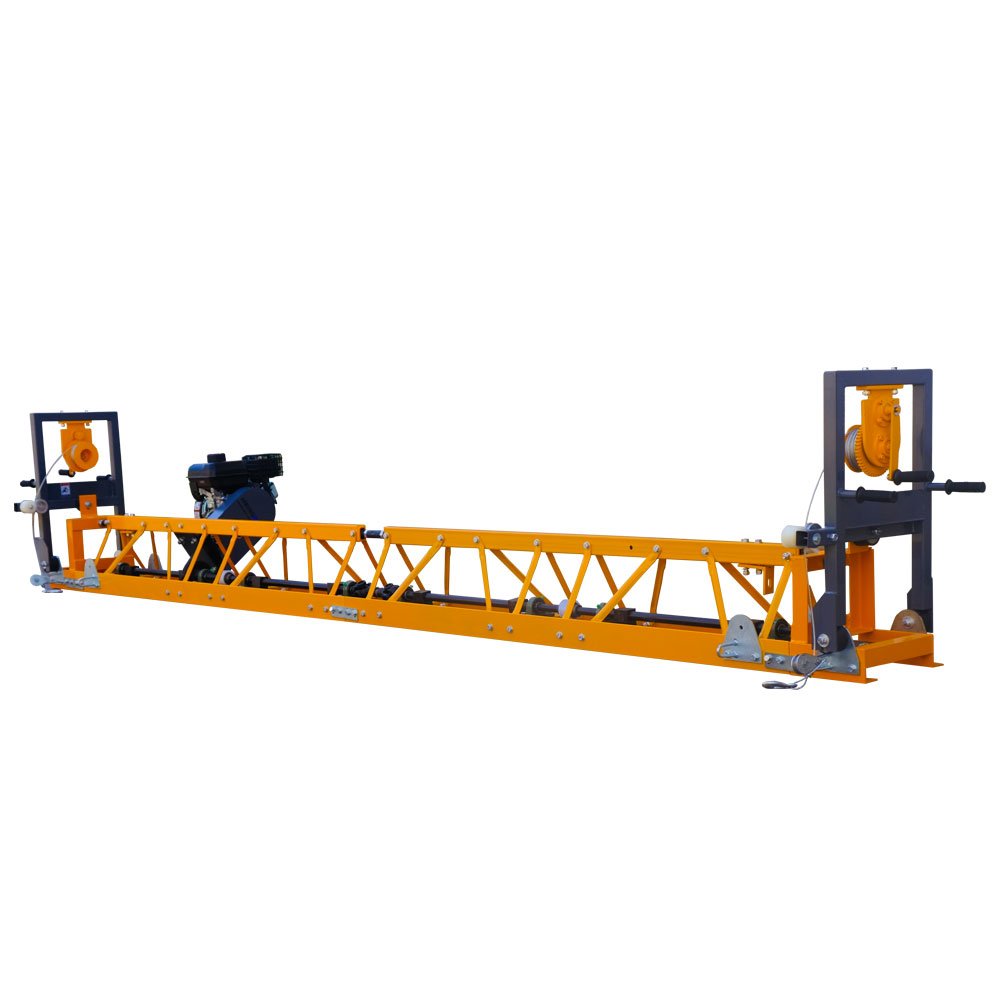

ZPL300Y Vibratory Truss Screed
€5,100.00
Hiking Machinery ZPL300Y Vibratory Truss Screed Machine, specifically designed for construction companies and concrete contractors to provide efficient and durable concrete leveling solutions. This robust machine is made from high-wear-resistant steel and features a manual winch, making it ideal for leveling and vibrating large concrete surfaces such as bridges, roads, warehouses, and parking lots.The modular design allows users to flexibly assemble leveling sections of 0.5 meters, 1 meter, and 2 meters in length, covering a working width from 4 to 15 meters to meet various project requirements.
Equipped with powerful Honda and B&G engines that can reach speeds of up to 8,000 RPM, the ZPL300Y utilizes axial vibration technology to ensure an even distribution of vibratory force, significantly enhancing the density and flatness of the concrete surface. Its user-friendly operation and high efficiency effectively save both labor and time costs. Compared to similar products on the market, the ZPL300Y stands out with its exceptional cost performance, long lifespan, and outstanding capabilities, ensuring your projects are completed on time and to the highest quality standards.
If you are interested in our products and want to know the specific parameters and prices, please click the button below and leave your contact information.
DESCRIPTION
Hiking Machinery is dedicated to delivering cost-effective concrete leveling solutions to the construction industry by utilizing innovative technology and superior quality. By choosing the Hiking Machinery ZPL300Y, you will benefit from an efficient, durable, and low-maintenance Vibratory Truss Screed Machine that enhances your construction productivity and ensures the timely and high-quality completion of your projects.

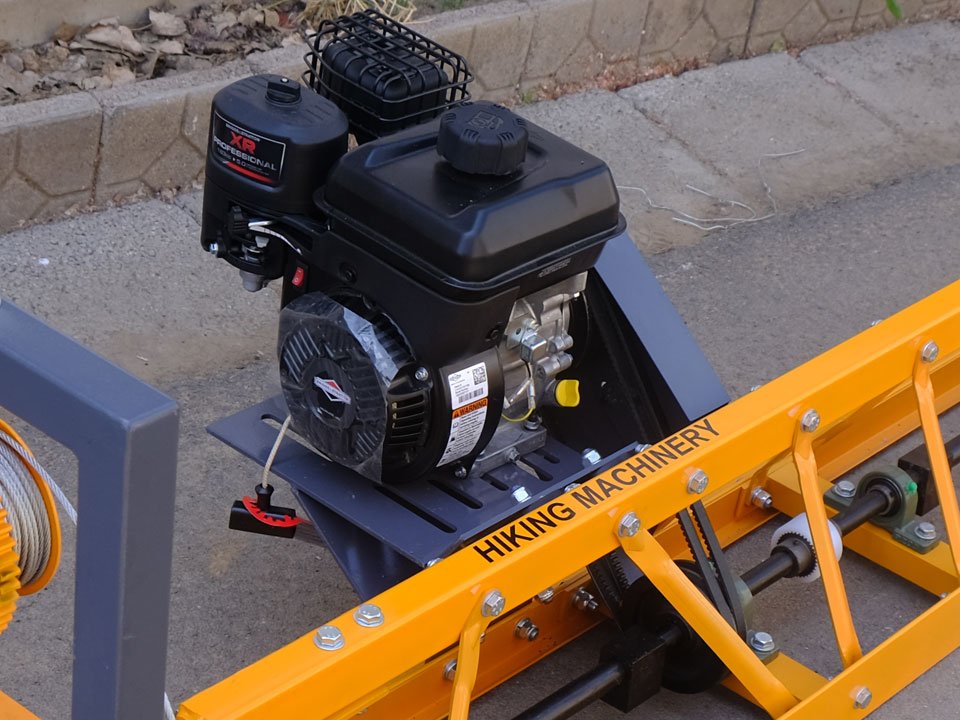

ZPL300Y Power Unit
| Model | Engine Model | Size | Weigh |
|---|---|---|---|
|
Power Unit (ZPL-P10Y) |
Working Width Within 6 Meters: Honda Gx160 / Briggs & Stratton Xr5.0 / Vanguard 5.0 / Loncin 168F Working Width More Than 6 Meters: Honda Gx390 / Loncin 190F |
Length: 1.0m
Frame Width: 400mm
Height: 335mm |
63KG |
|
Power Unit (ZPL-P20Y) |
Working Width Within 6 Meters: Honda Gx160 / Briggs & Stratton Xr5.0 / Vanguard 5.0 / Loncin 168F Working Width More Than 6 Meters: Honda Gx390 / Loncin 190F |
Length: 2.0m
Frame Width: 400mm
Height: 335mm |
89KG |
ZPL300Y Center Section
| Model | Size | Weight |
|---|---|---|
|
Center Section (ZPL-C10Y) |
Length: 1.0m
Frame Width: 400mm
Height: 335mm |
38kg |
|
Center Section (ZPL-C20Y) |
Length: 2.0m
Frame Width: 400mm
Height: 335mm |
72kg |
ZPL300Y End Section
| Model | Size | Weight |
|---|---|---|
|
End Section (ZPL-E10Y) |
Length: 1.0m
Frame Width: 400mm
Height: 335mm |
42kg |
|
End Section (ZPL-E20Y) |
Length: 2.0m
Frame Width: 400mm
Height: 335mm |
76kg |
Modular Design: Selection of leveling section lengths (0.5 meters, 1 meter, and 2 meters) allows for flexible assembly and coverage of working widths from 4 to 15 meters, accommodating various construction needs.
Efficient Vibration System: Axial vibration technology ensures even distribution of vibratory forces, enhancing the density and flatness of the concrete.
Powerful Performance: Powered by Honda and B&S engines, reaching speeds up to 8,000 RPM, the ZPL300Y provides robust power for effective concrete leveling.
Durable Materials: Constructed from wear-resistant steel, ensuring long-lasting performance even in harsh construction environments.
User-Friendly Operation: Featuring a manual winch, the ZPL300Y is easy to operate, reducing labor requirements and improving work efficiency.
Wide Applicability: Suitable for various large-scale concrete construction scenarios, including bridges, roads, warehouses, and parking lots.
Time and Labor Savings: Significantly boosts work efficiency, helping you complete projects more effectively.
At Hiking Machinery, we are committed to providing high-cost-performance concrete leveling solutions through innovative technology and superior quality. The ZPL300Y not only leads in technology but also continuously innovates user experience, ensuring every customer enjoys the best construction outcomes. By choosing the ZPL300Y, your construction team will efficiently complete large-scale concrete leveling tasks while saving time and labor costs, all while ensuring high-quality project delivery.
FQA
1. Product Quality
As a world leader in the supply of construction equipment, Hiking Machinery places product quality at its core. Our equipment is manufactured in strict accordance with the ISO 9001:2016 quality management system, using high-quality components from globally recognised suppliers to ensure that each machine meets the highest standards. Before despatch, each machine undergoes systematic testing to ensure that the products you receive are impeccable. With a professional and meticulous approach, we provide you with reliable, high-quality equipment.
2. After Sales
While we strive to uphold the highest standards of product quality, unforeseen issues can occasionally arise. To address this, we offer a one-year free warranty service for our customers in Europe. Throughout this period, we will provide complimentary parts and technical support for any issues not caused by user error. For your convenience, designated spare parts will be included with your shipment.
After the one-year warranty period, we will still offer a cost guarantee service. Our engineers will be available for free technical consultations, and you will only be responsible for the cost of any necessary parts.
3. Shipping
We offer a variety of shipping methods for our European customers, including sea, rail, and air transportation. For most products, we can provide door-to-door service. Generally, shipping times are approximately 45-55 days for sea transport, 35-45 days for rail, and 20-25 days for air. Please note that these timeframes are approximate due to the uncertainties of international shipping. We will ensure that all equipment is carefully packaged to guarantee safe transportation. Hiking takes full responsibility for any damage or loss that may occur during transit to protect your interests.
